Hydraulic Deep Drawing Press

Hydraulic Deep Drawing Press Manufacturers

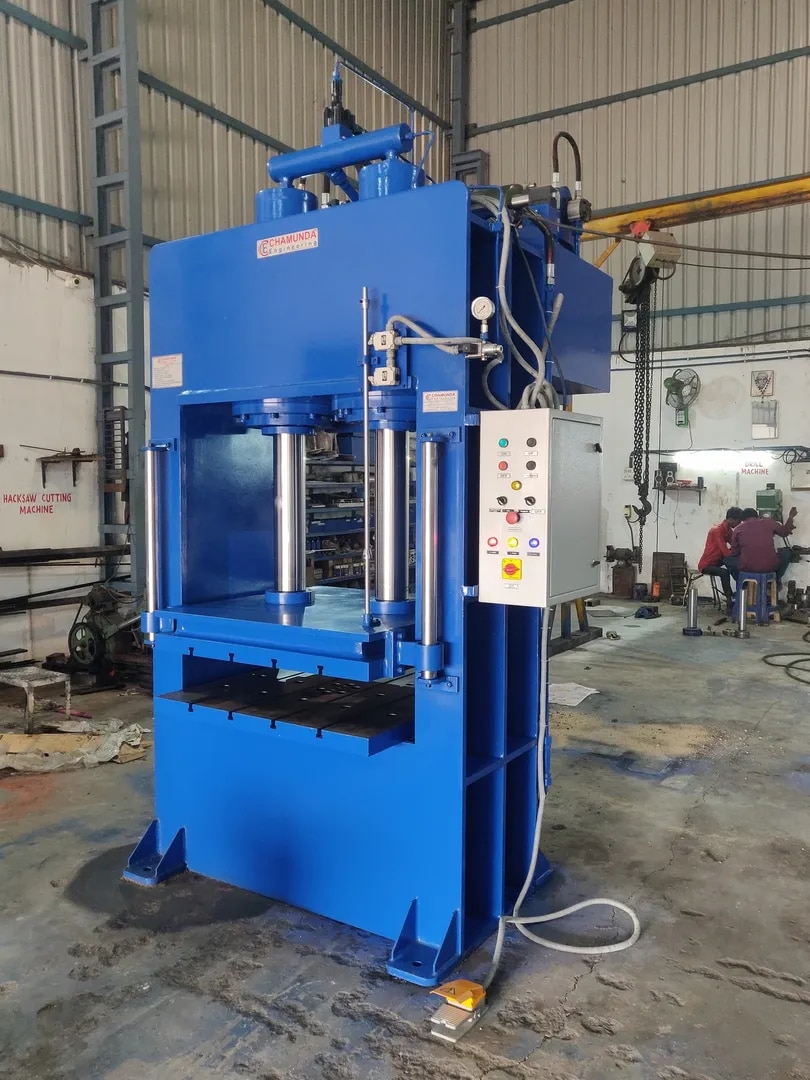

Presstech Machine is a trusted manufacturer of Hydraulic Deep Drawing Presses, engineered for high-precision sheet metal forming applications. Our deep drawing presses are designed with a robust H-frame structure, high-pressure hydraulic system, and precision-guided rams to ensure uniform drawing depth and superior surface finish. Manufactured using premium-grade steel and quality hydraulic components, these machines are ideal for producing cups, containers, utensils, automotive parts, and industrial components. Available in customized tonnage, stroke length, and bed size, Presstech Machine’s deep drawing presses deliver reliable performance, energy efficiency, and long service life for continuous manufacturing operations.

Here are some key features and components of a hydraulic H-frame press:

H-Frame Structure: The press has a robust H-shaped frame made of high-strength steel. This design offers stability and rigidity during the pressing process.

Hydraulic System: The press utilizes a hydraulic system to generate and control the pressing force. It consists of a hydraulic pump, hydraulic fluid, hoses, and cylinders. The hydraulic pump applies pressure to the fluid, which is then transmitted to the cylinders to create the pressing force.

Ram or Cylinder: The press contains a hydraulic ram or cylinder, which moves vertically within the H-frame structure. The ram is driven by hydraulic pressure and is responsible for exerting force on the workpiece during the pressing operation.

Pressure Gauge: A pressure gauge is often included to measure and display the applied force. It helps in monitoring and adjusting the pressure according to the specific requirements of the task.

Control Panel: The press may have a control panel with buttons or switches to operate the hydraulic system. It allows the user to control the movement of the ram, adjust the pressure, and ensure safe operation.

Worktable: The press features a worktable where the workpiece or tooling is positioned for pressing. The worktable is usually adjustable in height, allowing for different workpiece sizes and configurations.

Safety Features: Hydraulic H-frame presses incorporate safety features to protect the operator and prevent accidents. These may include emergency stop buttons, safety guards, two-hand controls, and pressure relief valves to prevent overloading.

Hydraulic H-frame presses come in various sizes and capacities, ranging from small benchtop models for lighter tasks to large floor-standing units capable of handling heavy-duty applications. They find applications in industries such as manufacturing, automotive, metalworking, fabrication, and maintenance workshops for tasks like pressing bearings, forming metal parts, assembling components, and more.

Product Features:

Accurate clear pass between Bolster and Table Plate

Accurate Stroking movement in Downward and Upward direction.

Emergency stop push switch.

T-Slot for easy clamping of Die and Punch on both Bolster and Table Plate

Four side Hardened Rod for guide

Adjustable Pressure Relief/Controlling Valve for HT material.

Indication light (Tower Light) with safety alarm sound

Safety Decals around the machine, keep operator handy.

Standard features available on most H-Type Hydraulic Presses models:

Electric / Hydraulic operation provides smooth, consistent pressing action;

Open sides facilitates work on long pieces;

Easily changeable flat ram nose allows the user to adapt the press to a specific job;

Quality, low speed Baldor motor;

Low speed pump offers a quiet, dependable operation.

Self-locking table design eliminates lateral movement.
